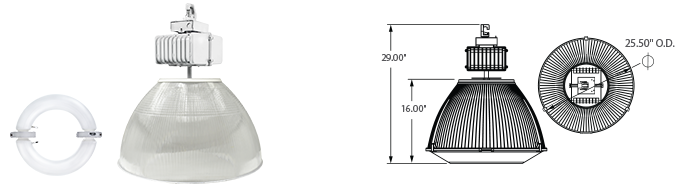

Induction 25" Polycarbonate High-Bay Fixtures Description

  • Ballast Type
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Lamp/Ballast System Life
  • Lumen Maintenance @75,000Hrs
  • Color Temperature
  • Color Rendering Index (CRI)
    		• Electronic
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    100,000 Hrs.
    >70%
    5000 K
    83
  • Minimum Starting Temperature
  • Maximum Operating Temperature
  • Lamp Operating Frequency
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
    		• -20 F
    160 F
    250 kHz
    > 0.98
    < 10%
    < 10 Amp
    Part 18, Subp. C

    Induction 25" Polycarbonate High-Bay Fixtures

    Application, Features and Benefits
    • 25" impact Resistant Non-yellowing, UV protected polycarbonate refractor & drop lens
    • Aluminum Cast Ballasts Enclosure, sealed for moisture and dust.
    • Ballast made with long life components
    • InstantON(TM) flicker-free Cold Start and Hot Re-Start
    • Correlated Color Temperature of 5000 K for greater visibility
    • High Power Factor, Low THD Replaceable Ballast
    • Advanced phosphors for high Lumen Maintenance and high lumen output
    • Aluminum Anodized reflectors for superior long term performance
    • Up to 20 years Maintenance free operation
    • 400W or 500W are ideal retrofits for 1000W HID or HPS fixtures
    • Very High Output , High Light Quality and Very Long Life
    • Light Sensor Detector (LD) - optional
    • Motion Sensor Detector (MD) - optional

    Product Information

    Item No. Description Watts Initial
    Lumens    		 Line
    Voltage
    Supply    		 Line Current Total
    Harmonic
    Distortion
    (THD)    		 Power Factor Packaging Dimensions
    Width Length Height
    25200-PC 25" High-Bay 200 16,000 120-277 VAC 1.75-0.75 Amp <10% 0.98 36 in. 775mm 36 in. 775mm 31 in. 650mm
    25250-PC 25" High-Bay 250 20,000 120-277 VAC 2.18-0.94 Amp <10% 0.98 36 in. 775mm 36 in. 775mm 31 in. 650mm
    25300-PC 25" High-Bay 300 24,000 120-277 VAC 2.62-1.13 Amp <10% 0.98 36 in. 775mm 36 in. 775mm 31 in. 650mm
    25400-PC 25" High-Bay 400 32,000 120-277 VAC 3.50-1.51 Amp <10% 0.98 36 in. 775mm 36 in. 775mm 31 in. 650mm
    25500-PC 25" High-Bay 500 40,000 120-277 VAC 4.37-1.89 Amp <10% 0.98 36 in. 775mm 36 in. 775mm 31 in. 650mm

    Voltage: UNV = 120V-277V  [ Higher 347V or 480V also available ]
