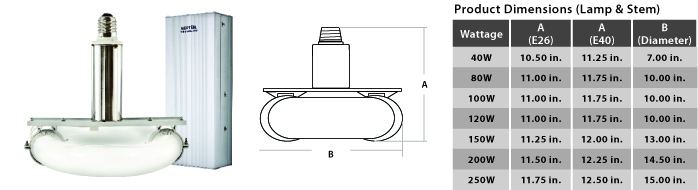

Induction Circline Retrofit Kit - 8.5" Stem Description


  • Ballast Type
  • Start Method
  • Hot Re-start
  • Input Line Voltage
  • Input Line Frequency
  • Lamp Operating Frequency
  • Ballast Off-State Draw
  • Sound Rating
  • ANSI Surge Protection
  • Lamp / Ballast System Life
  • Lumen Maintenance @75,000Hrs
  • Electronic
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    250 kHz
    0 Watts
    Class A
    Class A
    100,000 Hrs.
    >70%
  • Color Temperature
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
  • Warranty
  • 5000°K
    83
    -20°F
    160°F
    80
    Yes
    > 0.98
    < 10%
    < 10 Amp
    Yes
    Part 18, Subp. C
    5 Years

    Induction Circline Retrofit Kit - 8.5" Stem

    Application, Features and Benefits
    • Cast aluminum support bracket with stainless steal hardware.
    • Custom designed aluminum stem.
    • Supplied with medium (E26) or mogul base (E40).
    • Teflon coated wiring protected from moisture, dust, heat, & cold.
    • Inductively coupled circular induction bulb.
    • High power factor, low THD electronic ballast with surge protection.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • Amalgam technology with very low mercury content.
    • High quality glare-free light with high CRI (83).
    • Bright white light (5000˚K) for greater visibility and safety.
    • Advance phosphors for high lumen output and high lumen maintenance.
    • Up to 20 year maintenance free operation.
    • 5 Year System Warranty.

    Product Information

    Model No. Description Rated Watts Input Watts

    Initial Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    73040RK-UNV Circline RetroFit Kit
    40 41
    3,200 120-277 0.35-0.15 <10% 0.98 3 lbs.
    73080RK-UNV Circline RetroFit Kit 80 82
    6,400 120-277
    0.69-0.30 <10% 0.98 4 lbs.
    73100RK-UNV Circline RetroFit Kit 100 105
    8,000 120-277 0.87-0.37 <10% 0.98 4 lbs.
    73120RK-UNV
    Circline RetroFit Kit 120
    125
    9,600
    120-277
    1.05-0.45
    <10% 0.98
    5 lbs.
    73150RK-UNV Circline RetroFit Kit 150 158 12,000 120-277 1.31-0.56 <10% 0.98 5 lbs.
    73200RK-UNV Circline RetroFit Kit 200 210 16,000 120-277 1.75-0.75 <10% 0.98 6 lbs.
    73250RK-UNV Circline RetroFit Kit 250 262 20,000 120-277 2.18-0.94 <10% 0.98 6 lbs.
    73300RK-277V Circline RetroFit Kit 300 325 24,000 277 1.13 <10% 0.98 6 lbs.
