LED - Parking Lot Shoebox Fixtures - LED-31xxx-M5 Series Description


  • LED Driver
  • Power Supply
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Current Crest Factor
  • Driver Off-State Draw
  • Vibration Compliance
  • Universal Input Line Voltage
  • Input Line Frequency
  • Projected (L70) @ 25°C
  • Color Temperature
  • Constant Current
    350mA
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C
    1.5 maximum
    0 Watts
    3G
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.
    5,000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • ETL Listed / UL Standard 1598
  • EPA Rating
  • Housing IP Rating
  • Driver IP Rating
  • Optics IP Rating
  • Warranty
  • > 80
    -40°C
    +50°C
    > 120
    Yes
    > 0.90
    < 20%
    < 10 Amp
    Part 15, Subp. C
    Yes
    0.71 ft.²
    IP65
    IP67
    IP68
    10 Year

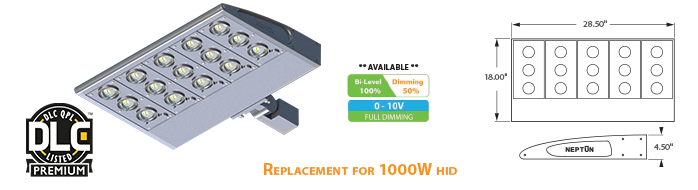

    LED - Parking Lot Shoebox Fixtures - LED-31xxx-M5 Series

    Application, Features and Benefits
    • 1000W HID or HPS Replacement.
    • Heavy-gauge, die-cast aluminum housing.
    • Corrosion resistant electrocoat grey or dark bronze finish (custom colors available).
    • Integral structural support plate for mounting arm ensures strength.
    • Slim, state of the art, low profile design for minimum wind load resistance.
    • Continuous silicone gasket surrounds lens for weather tight seal.
    • Correlated Color Temperature of (5000°K) for greater visibility and safety.
    • High Output COB LED's with borocilicate glass lens optics.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Optional 20kV/10kA surge protector available.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 20 years Maintenance free operation.
    • 10 Year Warranty on complete fixture. (LED's, Driver, & Housing)
    • Optional: Bi-Level Dimming, 0-10V Dimming, Wi-Fi Control, Remote Monitoring and ON/OFF Control.

    Product Information

    Model No. Description Rated Watts Input Watts
    Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    LED-31400-M5-UNV LED Area Light Fixture 400 405
    51,000 120-277 4.08 - 1.51 <20% >0.90 50 lbs.
