LED - 24" Square Post Top Parking/Area Light Fixture Description


  • LED Driver
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Current Crest Factor
  • Driver Off-State Draw
  • Vibration Compliance
  • Universal Input Line Voltage
  • Input Line Frequency
  • Projected (L70) @ 25°C
  • Color Temperature
  • Constant Current
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C High
    1.5 maximum
    0 Watts
    3G
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.
    Multiple (+/-300°K)
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • EPA Rating
  • Driver IP Rating
  • Optics IP Rating
  • Warranty
  • > 80
    -40°C
    +50°C
    > 130
    Yes
    > 0.95
    < 15%
    < 10 Amp
    Part 15, Subp. C
    1.66 ft.²
    IP67
    IP68
    10 Year Limited

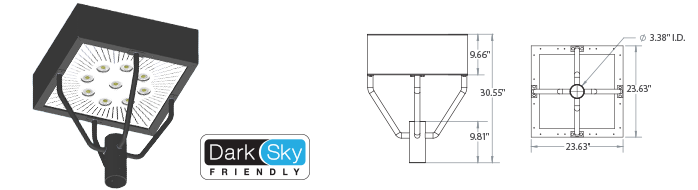

    LED - 24" Square Post Top Parking/Area Light Fixture

    Application, Features and Benefits
    • Heavy-guage stainless steel housing.
    • 3-3/8" I.D. Slip Fitter Accepts up to 3.00" round pipe or tenon.
    • Corrosion resistant electrocoat dark bronze finish (custom colors available).
    • Integral structural support plate for mounting arm ensures strength.
    • Post-top mounting system incorporates stainless steel hardware
    • High Output COB LED's with borocilicate glass lens optics.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Optional 20kV/10kA surge protector available.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 20 years Maintenance free operation.
    • 10 Year Limited Warranty on complete fixture. (LED's, Driver, & Housing)
    • Optional: Bi-Level Dimming, 0-10V Dimming, Wi-Fi Control, Remote Monitoring and ON/OFF Control

    Product Information

    Model No. Description Input Watts
    Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    LED-59180-UNV
    LED Post Top Fixture 182
    23,660 120-277 1.57 - 0.68 <15% >0.95 65 lbs.
    LED-59200-UNV LED Post Top Fixture 202 26,260 120-277 1.74 - 0.75
    <15% >0.95 65 lbs.
    LED-59260-UNV LED Post Top Fixture 263 34,060 120-277 2.29 - 0.98 <15% >0.95 65 lbs.
    LED-59320-UNV LED Post Top Fixture
    323 41,860
    120-277 2.79 - 1.21 <15% >0.95 65 lbs.
