Induction 23" Square Flood Light Fixtures - 39xxx Series Description


  • Ballast Type
  • Start Method
  • Hot Re-start
  • Input Line Voltage
  • Input Line Frequency
  • Lamp Operating Frequency
  • Ballast Off-State Draw
  • Sound Rating
  • ANSI Surge Protection
  • Lamp / Ballast System Life
  • Lumen Maintenance @75,000Hrs
  • Color Temperature
  • Electronic
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    250 kHz
    0 Watts
    Class A
    Class A
    100,000 Hrs.
    >70%
    5000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
  • EPA Rating
  • IP Rating
  • Warranty
  • 83
    -20°F
    160°F
    80
    Yes
    > 0.98
    < 10%
    < 10 Amp
    Yes
    Part 18, Subp. C
    1.77
    IP65
    10 Year

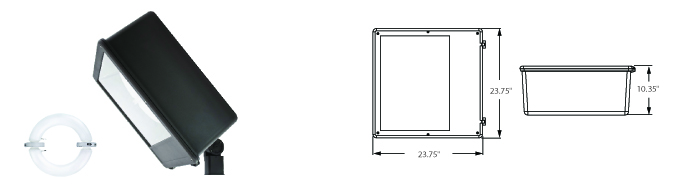

    Induction 23" Square Flood Light Fixtures - 39xxx Series

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing.
    • Custom designed anodized aluminum reflectors for superior illuminance.
    • Heat and impact resistant tempered flat glass lens.  (IESNA full-cutoff)
    • Integral structural support plate for mounting arm ensures strength.
    • Corrosion resistant electrocoat dark bronze finish (custom colors available).
    • Hinged aluminum door frame incorporates stainless steel hardware.
    • Continuous silicone gasketing surrounds lens for weather - tight seal.
    • Inductively coupled circular induction bulb.
    • High power factor, low THD electronic ballast with surge protection.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • High quality glare-free light with high CRI above (83).
    • Bright white light (5000˚K) for greater visibility and safety.
    • Advance phosphors for high lumen output and high lumen maintenance.
    • Up to 20 year maintenance free operation.
    • 10 Year Warranty.

    Product Information

    Model No. Description Rated Watts Input Watts

    Initial Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    39200-UNV
    23" FLOOD Fixture
    200 210
    16,000 120-277 1.75-0.75 <10% 0.98 55 lbs.
    39250-UNV 23" FLOOD Fixture 250 262 20,000 120-277 2.18-0.94 <10% 0.98 55 lbs.
    37300-UNV* 23" FLOOD Fixture 300 315 24,000 120-277 2.62-1.13 <10% 0.98 60 lbs.
    39400-UNV* 23" FLOOD Fixture 400 420 32,000 120-277 3.50-1.51 <10% 0.98 60 lbs.
    39500-UNV* 23" FLOOD Fixture 500 525 40,000 120-277 4.37-1.89 <10% 0.98 60 lbs.
    * Features dual bulbs & ballasts
