Induction - Flood Fixture - Slip Fit and Yoke Mount Description


  • Ballast Type
  • Start Method
  • Hot Re-start
  • Input Line Voltage
  • Input Line Frequency
  • Lamp Operating Frequency
  • Ballast Off-State Draw
  • Sound Rating
  • ANSI Surge Protection
  • Lamp / Ballast System Life
  • Lumen Maintenance @75,000Hrs
  • Color Temperature
  • Electronic
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    250 kHz
    0 Watts
    Class A
    Class A
    100,000 Hrs.
    >70%
    5000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
  • IP Rating
  • Warranty
  • 83
    -20°F
    160°F
    80
    Yes
    > 0.98
    < 10%
    < 10 Amp
    Yes
    Part 18, Subp. C
    IP65
    10 Year

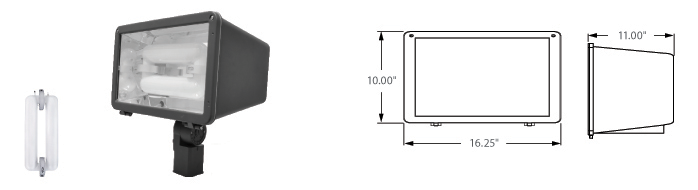

    Induction - Flood Fixture - Slip Fit and Yoke Mount

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing.
    • Anodized aluminum reflectors for superior illuminance.
    • Heat and impact resistant, tempered, flat glass lens.
    • Slip Fitter or Yoke bracket mounting to allow for adjustable tilt.
    • Corrosion resistant electrocoat grey finish (custom colors available).
    • Hinged aluminum door frame incorporates stainless steel hardware.
    • Continuous silicone gasketing surrounds lens for weather - tight seal.
    • Inductively coupled rectangle induction bulb.
    • High power factor, low THD electronic ballast with surge protection.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • High quality glare-free light with high CRI above (83).
    • Bright white light (5000˚K) for greater visibility and safety.
    • Advance phosphors for high lumen output and high lumen maintenance.
    • Up to 20 year maintenance free operation.
    • 10 Year Warranty.
    • Optional: DC 24V Operation - Solar Compatible

    Product Information

    Model No. Description Rated Watts Input Watts
    Initial Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    331040-UNV
    Flood Fixture
    40 41
    3,200 120-277 0.34-0.15 <10% 0.98 18 lbs.
    331080-UNV
    Flood Fixture 80 82 6,800 120-277 0.69-0.30 <10% 0.98 18 lbs.
    331100-UNV
    Flood Fixture 100 105 8,000 120-277 0.87-0.37 <10% 0.98 18 lbs.
    331120-UNV
    Flood Fixture 120 125 9,600 120-277 1.05-0.45 <10% 0.98 18 lbs.
