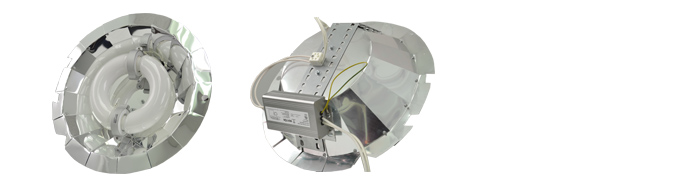

Neptun Certified - Kim Lighting - CC-CCS-17 - Retrofit Kit Description


  • Ballast Type
  • Start Method
  • Hot Re-start
  • Input Line Voltage
  • Input Line Frequency
  • Lamp Operating Frequency
  • Ballast Off-State Draw
  • Sound Rating
  • ANSI Surge Protection
  • Lamp / Ballast System Life
  • Lumen Maintenance @75,000Hrs
  • Electronic
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    250 kHz
    0 Watts
    Class A
    Class A
    100,000 Hrs.
    >70%
  • Color Temperature
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
  • 5000°K
    83
    -20°F
    160°F
    80
    Yes
    > 0.98
    < 10%
    < 10 Amp
    Yes
    Part 18, Subp. C

    Neptun Certified - Kim Lighting - CC-CCS-17 - Retrofit Kit

    Application, Features and Benefits
    • Custom designed anodized aluminum reflectors for superior illuminance.
    • Steel support brackets with stainless steal hardware.
    • Custom engineered for easy installation.
    • Teflon coated wiring protected from moisture, dust, heat, & cold.
    • Inductively coupled circular or rectangular induction bulb.
    • High power factor, low THD electronic ballast with surge protection.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • Amalgam technology with very low mercury content.
    • High quality glare-free light with high CRI (83).
    • Bright white light (5000˚K) for greater visibility and safety.
    • Advance phosphors for high lumen output and high lumen maintenance.
    • Up to 20 year maintenance free operation.
    • 5 Year System Warranty.

    Product Information

    Item No. Description Watts Initial
    Lumens
    Line
    Voltage
    Supply
    Line Current Total
    Harmonic
    Distortion
    (THD)
    Power Factor Packaging Dimensions
    Width Length Height
    KPTCC-26040RK-R17-UNV Custom Retrofit Kit
    40 3,200 120-277 VAC 0.35-0.15 Amp <10% 0.98 18in. 457mm 18in. 457mm 8in. 203mm
    KPTCC-26055RK-R17-UNV Custom Retrofit Kit 55 4,400 120-277 VAC 0.48-0.20 Amp <10% 0.98 18in. 457mm 18in. 457mm 8in. 203mm
    KPTCC-26065RK-R17-UNV Custom Retrofit Kit
    65 5,200 120-277 VAC 0.56-0.24 Amp <10% 0.98 18in. 457mm 18in. 457mm 8in. 203mm
    KPTCC-26080RK-R17-UNV Custom Retrofit Kit
    80 6,400 120-277 VAC 0.69-0.30 Amp
    <10% 0.98 18in  457mm 18in.  457mm 8in  203mm
    KPTCC-26100RK-R17-UNV Custom Retrofit Kit 100 8,000 120-277 VAC 0.87-0.37 Amp <10% 0.98
    18in.  457mm 18in.  457mm 8in.  203mm
    KPTCC-26120RK-R17-UNV Custom Retrofit Kit 120 9,600 120-277 VAC 1.05-0.45 Amp <10% 0.98 18in.  457mm 18in.  457mm 8in.  203mm

    Voltage:  UNV=120V-277V [ Higher 347V or 480V also available ]
