24VDC Solar Compatible LED Street Lighting Description


  • LED Driver
  • Power Supply
  • Start Method
  • Hot Re-start
  • Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • LED / Driver System Life
  • Lumen Maintenance @50,000Hrs
  • Color Temperature
  • Constant Current
    350mA
    InstantON
    InstantON
    24 VDC
    50/60 Hz
    0 Watts
    Class A
    70,000 Hrs.
    > 70%
    5000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • ETL Listed / UL Standard 1598
  • FCC Compliance
  • EPA Rating
  • Housing IP Rating
  • Optics IP Rating
  • Warranty
  • > 70
    -40°C
    50°C
    > 75
    Yes
    > 0.98
     Yes
    Part 18, Subp. C
    0.71
    IP65
    IP66
    5 Year

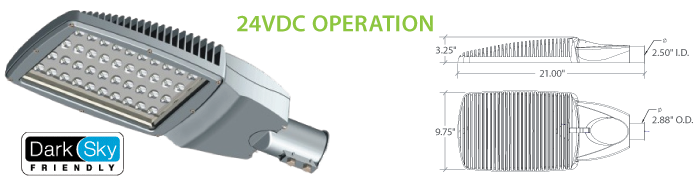

    24VDC Solar Compatible LED Street Lighting

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing with cooling fins.
    • 24VDC system suitable for use with Solar & Wind Systems.
    • Corrosion resistant electrocoat grey finish (custom colors available).
    • Slim, state of the art, low profile design for minimum wind load resistance.
    • Heat and impact resistant tempered flat glass lens.  (IESNA full-cutoff)
    • Toolless entry gear box for easy maintenance and installation.
    • Continuous silicone gasket surrounds lens for IP66 weather tight seal.
    • Optional NEMA Twistlock Photocell for increased energy savings.
    • Correlated Color Temperature of (5000°K) for greater visibility and safety.
    • 40 PCS High Output LED's.
    • High power factor, 24VDC driver.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 15 years Maintenance free operation.
    • 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)

    Product Information

    Model No. Description Rated Watts Input Watts

    Initial Lumens Line Voltage (VDC) Max Line Current (Amp) @ 24VDC
    Power Factor Weight
    LED-451040-24VDC
    LED Street Light Fixture
    40 42
    3,200 24 1.74 >0.98 20 lbs.
    LED-451050-24VDC LED Street Light Fixture 50 52 4,000 24 2.18 >0.98 25 lbs.
    LED-451060-24VDC LED Street Light Fixture 60 62 4,800 24 2.62 >0.98 25 lbs.
    LED-451070-24VDC LED Street Light Fixture 70 72 5,760 24 3.06 >0.98 25 lbs.
    LED-451080-24VDC LED Street Light Fixture 80 82 6,400 24 3.49 >0.98 25 lbs.
