24VDC Solar Compatible LED Canopy Lighting Description


  • LED Driver
  • Power Supply
  • Start Method
  • Hot Re-start
  • Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • LED / Driver System Life
  • Lumen Maintenance @50,000Hrs
  • Color Temperature
  • Constant Current
    350mA
    InstantON
    InstantON
    24 VDC
    50/60 Hz
    0 Watts
    Class A
    70,000 Hrs.
    > 70%
    5000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • ETL / UL Standard 1598
  • FCC Compliance
  • IP Rating
  • Warranty
  • > 70
    -40°C
    50°C
    > 70
    Yes
    > 0.98
     Yes
    Part 18, Subp. C
    IP65
    5 Year

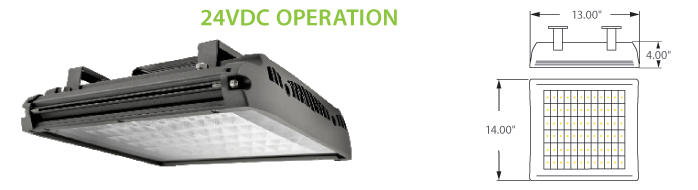

    24VDC Solar Compatible LED Canopy Lighting

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing with cooling fins.
    • 24VDC system suitable for use with Solar & Wind Systems.
    • Heat and impact resistant tempered glass lens with anti-glare diffuser
    • Corrosion resistant electrocoat dard grey finish (custom colors available).
    • Continuous silicone gasket surrounds lens for weather - tight seal.
    • 72 PCS High Output LED's.
    • High power factor, 24VDC Driver.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • Bright white light (5000˚K) for greater visibility and safety.
    • LED engine design with Advanced Thermal Management
    • Up to 15 year maintenance free operation.
    • 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)

    Product Information

    Model No. Description Rated Watts Input Watts

    Initial Lumens Line Voltage (VDC) Max Line Current (Amp) @ 24VDC
    Power Factor Weight
    LED-49040-14-24VDC
    14" Low-Profile Canopy
    40 42
    3,200 24 1.74 >0.98 26 lbs.
    LED-49055-14-24VDC 14" Low-Profile Canopy 55 57 4,400 24 2.40 >0.98 26 lbs.
    LED-49070-14-24VDC 14" Low-Profile Canopy 70 72 5,600 24 3.06 >0.98 26 lbs.
