24VDC Solar Compatible Induction Post Top Acorn Lighting Description


  • Ballast Type
  • Start Method
  • Hot Re-start
  • Input Line Voltage
  • Input Line Frequency
  • Lamp Operating Frequency
  • Ballast Off-State Draw
  • Sound Rating
  • Lamp / Ballast System Life
  • Lumen Maintenance @75,000Hrs
  • Color Temperature
    		•  Electronic
    InstantON
    InstantON
    24 VDC
    50/60 Hz
    250 kHz
    0 Watts
    Class A
    100,000 Hrs.
    >70%
    5000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • ETL Listed / UL Standard 1598
  • FCC Compliance
  • IP Rating
  • Warranty
    		•  83
    -20°F
    160°F
    80
    Yes
    > 0.98
    Yes
    Part 18, Subp. C
    IP65
    10 Year

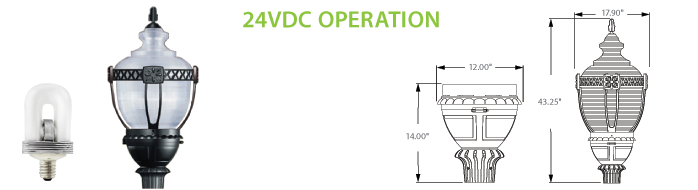

    24VDC Solar Compatible Induction Post Top Acorn Lighting

    Application, Features and Benefits
    • Fiberglass reinforced composite housing for excellent durability and strength.
    • 24VDC system suitable for use with Solar & Wind Systems.
    • High Efficiency, heat and impact resistant, UV protected, non-yellowing polycarbonate refractor.
    • Corrosion resistant electrocoat black finish (custom colors available).
    • 3" I.D. Slip Fitter Accepts up to 2-7/8" Pipe or Tenon. (hardware included)
    • Continuous silicone gasketing surrounds lens for weather - tight seal.
    • Inductively coupled U-Type Induction bulb.
    • High power factor, 24VDC electronic ballast.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • High quality glare-free light with high CRI above (83).
    • Bright white light (5000˚K) for greater visibility and safety.
    • Advance phosphors for high lumen output and high lumen maintenance.
    • Up to 20 year maintenance free operation.
    • 10 Year Warranty.

    Product Information

    Model No. Description Rated Watts Input Watts

    		 Initial Lumens Line Voltage (VDC) Max Line Current (Amp) @ 24VDC
    		 THD Power Factor Weight
    93050-24VDC Post-Top Acorn Fixture
    		 50 51
    		 3,500 24 2.18 <10% 0.98 38 lbs.
    93080-24VDC Post-Top Acorn Fixture 80 82 6,400 24 3.49 <10% 0.98 38 lbs
    93100-24VDC Post-Top Acorn Fixture 100 105 8,000 24 4.37 <10% 0.98 38 lbs
