24VDC Solar Compatible LED Canopy Lighting Description
|
LED Driver
Power Supply
Start Method
Hot Re-start
Input Line Voltage
Input Line Frequency
Driver Off-State Draw
Sound Rating
LED / Driver System Life
Lumen Maintenance @50,000Hrs
Color Temperature
|
Constant Current 350mA InstantON InstantON 24 VDC 50/60 Hz 0 Watts Class A 70,000 Hrs. > 70% 5000°K |
Color Rendering Index (CRI)
Minimum Starting Temperature
Maximum Starting Temperature
Lumens per Watt
Shock / Vibration Resistant
Power Factor
ETL / UL Standard 1598
FCC Compliance
IP Rating
Warranty
|
> 70 -40°C 50°C > 70 Yes > 0.98 Yes Part 18, Subp. C IP65 5 Year |

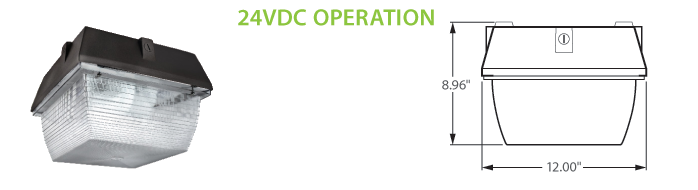

24VDC Solar Compatible LED Canopy Lighting
Application, Features and Benefits
- Heavy-gauge, die-cast aluminum housing.
- 24VDC system suitable for use with Solar & Wind Systems.
- High efficiency, heat and impact resistant, UV protected, non yellowing polycarbonate lens / refractor.
- Custom designed anodized aluminum reflectors for superior illuminance.
- Corrosion resistant electrocoat dark bronze finish (custom colors available).
- Easy removal lens with (4) stainless steel screws.
- Continuous silicone gasket surrounds lens for weather - tight seal.
- 260 PCS High Output LED's.
- High power factor, low THD driver.
- Instant-On flicker-free Cold Start and Hot Re-Start.
- Bright white light (5000˚K) for greater visibility and safety.
- LED engine design with Advanced Thermal Management
- Up to 15 year maintenance free operation.
- 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)
Product Information
LED-12040-24VDC
|
LED 12" Square Canopy
|
40 |
41
|
3,600 |
24 |
1.74 |
>0.98 |
12 lbs. |
LED-12060-24VDC |
LED 12" Square Canopy |
60 |
61 |
5,100 |
24 |
2.62 |
>0.98 |
12 lbs. |
LED-12080-24VDC |
LED 12" Square Canopy |
80 |
81 |
6,400 |
24 |
3.49 |
>0.98 |
12 lbs. |
