180Ah LFP 24VDC Battery Pack System Description
|
Battery Type
System Voltage
Charge Operating Temperature
Discharge Operating Temperature
Storage Temperature
Storage Humidity
|
Lithium Iron Phosphate 24VDC 0°C - 45°C -20°C - 60°C -20°C - 55°C < 85%
|
System Cycles
Weight
EPA Rating
FCC Compliance
UL Standard 1703
Warranty
|
5,000 200 lbs 2.43 ft² Part 18, Subp. C Yes 5 Year |

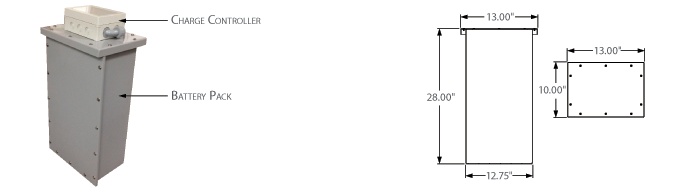

180Ah LFP 24VDC Battery Pack System
Application, Features and Benefits
- Heavy-gauge, die-cast aluminum housing.
- Lithium Iron Phosphate (LFP) Batteries.
- Intelligent PWM Charge/Discharge Controller for MPPT operation.
- Programmable On/Off time of operation for 4, 6, 8, 10, or 12 hours.
- Corrosion resistant electrocoat gray finish (custom colors available).
- Hinged aluminum door frame incorporates stainless steel hardware.
- Continuous silicone gasketing surrounds housing for weather - tight seal.
- Square or Round pole mounting brackets included.
- 5 Year Warranty on complete unit.
- Compatible with Neptun LED & Induction 24VDC lighting fixtures.
Product Information - LFP 24VDC Battery
NE-VLFP-180Ah-24VDC |
180 Ah
|
24V |
AUTO @ 20% CAPACITY |
40V |
20V |
Product Information - PWM Solar Charge Controller
NE-CL10-20-24VDC
|
20A
|
20A |
24V/12V AUTO |
