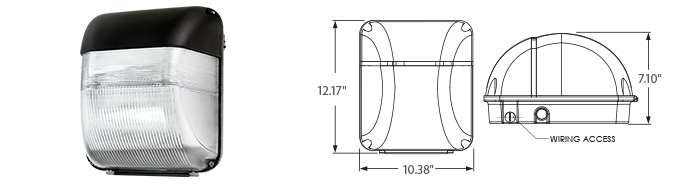

LED Wall Pack Light Fixtures - 43xxx Series Description

  • LED Driver
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • System Life
  • Lumen Maintenance @50,000Hrs
  • Color Temperature
  • Color Rendering Index (CRI)
    		• Constant Current
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    70,000 Hrs.
    >85%
    5000 K
    >75
  • Minimum Starting Temperature
  • Maximum Operating Temperature
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
    		• -40 F
    125 F
    > 0.98
    < 10%
    < 10 Amp
    Part 18, Subp. C

    LED Wall Pack Light Fixtures - 43xxx Series

    Application, Features and Benefits
    • Aluminum cast housing powder coated
    • Heat and impact resistant polycarbonate diffuser/lens
    • 70,000 hrs LED driver made with long life components
    • InstantON(TM) flicker-free Cold Start and Hot Re-Start
    • High Power Factor, Low THD Driver
    • Concealed continuous gasket seals against harmful dust, dirt, moisture and insects
    • Up to 15 years Maintenance free operation
    • Patented LED engine design with Advanced Thermal Management
    • 5 Year Warranty

    Product Information

    Item No. Description Total Watts Initial Lumens Line Voltage Supply Line Current Total
    Harmonic
    Distortion
    (THD)    		 Power Factor Packaging Dimensions
    Width Length Height
    LED-43040 LED Wall Pack Fixture 40 3,000 120-277 VAC 0.35-0.16 Amp <10% >0.98 12in. 300mm 20in. 500mm 6.5in. 165mm
    LED-43060 LED Wall Pack Fixture 60 4,500 120-277 VAC 0.52-0.22 Amp <10% .0.98 12in. 300mm 20in. 500mm 6.5in. 165mm

    Voltage: UNV = 120V-277V
