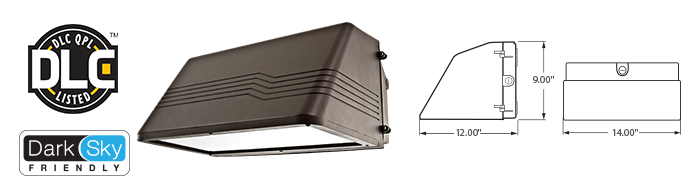

LED - 14" Wall Pack Full Cut-Off Fixtures - 21xxxFCT Series Description

  • LED Driver
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • System Life
  • Lumen Maintenance @50,000Hrs
  • Color Temperature
  • Color Rendering Index (CRI)
    		• Constant Current
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    70,000 Hrs.
    >85%
    5000 K
    >75
  • Minimum Starting Temperature
  • Maximum Operating Temperature
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
    		• -40 F
    125 F
    > 0.98
    < 10%
    < 10 Amp
    Part 18, Subp. C

    LED - 14" Wall Pack Full Cut-Off Fixtures - 21xxxFCT Series

    Application, Features and Benefits

    Product Information

    Item No. Description Total Watts Initial Lumens Line Voltage Supply Line Current Total Harmonic Distortion (THD) Power Factor Packaging Dimensions
    Width Length Height
    LED-21040FCT LED Wall Pack - 14" Full Cut-Off 40 3,200 120-277 VAC 0.35-0.15 Amp <10% >0.98 15.0 in. 381mm 10.0in.  254mm 11.0 in. 280mm
    LED-21055FCT LED Wall Pack - 14" Full Cut-Off 55 4,400 120-277 VAC 0.48-0.20 Amp <10% >0.98 15.0in.  381mm 10.0 in. 254mm 11.0in.  280mm
    LED-21070FCT LED Wall Pack - 14' Full Cut-Off 70 5,600 120-277 VAC 0.61-0.26 Amp <10% >0.98 15.0in.  381mm 10.0in.  254mm 11.0in.  280mm

    Voltage: UNV = 120V - 277V
