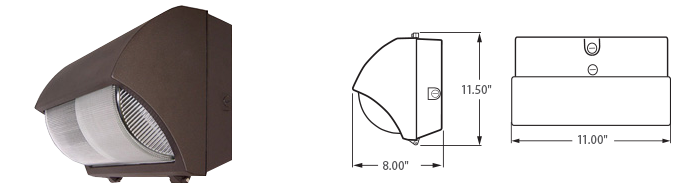

LED 11" Wall Pack - Flood Type Fixture Description


  • Driver
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Driver Off-State Draw
  • Universal Input Line Voltage
  • Input Line Frequency
  • Projected (L70) @ 25°C
  • Color Temperature
  • Constant Current
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C High
    0 Watts
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.
    Multiple (+/-300°K)
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • ETL Listed / UL Standard 1598
  • Housing IP Rating
  • Driver IP Rating
  • Warranty
  • > 80
    -40°C
    +50°C
    > 110
    Yes
    > 0.95
    < 15%
    < 10 Amp
    Part 15, Subp. C
    Yes
    IP65
    IP67
    5 Year Limited

    LED 11" Wall Pack - Flood Type Fixture

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing.
    • Heat and impact resistant flat glass lens.
    • Corrosion resistant electrocoat dark bronze finish (custom colors available).
    • Hinged aluminum door frame incorporates stainless steel hardware.
    • Continuous silicone gasket surrounds lens for weather - tight seal.
    • Correlated Color Temperature of (5000°K) for greater visibility and safety.
    • High Output COB LED's with borocilicate glass lens optics.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Optional 20kV/10kA surge protector available.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 20 years Maintenance free operation.
    • 5 Year Limited Warranty on fixture. (LED's, Driver, & Housing)
    • Optional:  Bi-Level Dimming, 0-10V Dimming, Remote Monitoring and ON/ OFF Control, DC 24V Operation - Solar Compatible

    Product Information

    Model No. Description Rated Watts Input Watts
    Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    LED-21040RFLD-UNV
    Wall Pack - Flood Type 40 41
    4,600 120-277 0.35 - 0.15 <15% >0.95 15 lbs.
    LED-21055RFLD-UNV Wall Pack - Flood Type 55 53 6,200 120-277 0.48 - 0.20 <15% >0.95 15 lbs.
    LED-21070RFLD-UNV Wall Pack - Flood Type
    70 71 8,200
    120-277 0.61 - 0.26 <15% >0.95 15 lbs.
