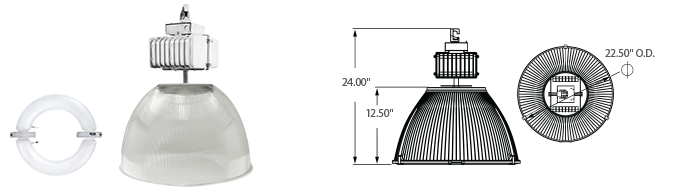

Induction 22" Polycarbonate High Bay Light Fixtures| 19xxx-PC Series Description

  • Ballast Type
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Lamp/Ballast System Life
  • Lumen Maintenance @75,000Hrs
  • Color Temperature
  • Color Rendering Index (CRI)
    		• Electronic
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    100,000 Hrs.
    >70%
    5000 K
    83
  • Minimum Starting Temperature
  • Maximum Operating Temperature
  • Lamp Operating Frequency
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
    		• -20 F
    160 F
    250 kHz
    > 0.98
    < 10%
    < 10 Amp
    Yes
    Part 18, Subp. C

    Induction 22" Polycarbonate High Bay Light Fixtures| 19xxx-PC Series

    Application, Features and Benefits
    • 22 inch heat and impact resistant UV protected diffuser and lens
    • Cast aluminum gear box with mounting hook
    • Ballast made with long life components
    • InstantON(TM) flicker-free Cold Start and Hot Re-Start
    • Correlated Color Temperature of 5000°K for greater visibility
    • High Power Factor, Low THD Replaceable Ballast
    • Advanced phosphors for high Lumen Maintenance and high lumen output
    • Up to 20 years Maintenance free operation
    • 10 Year Warranty

    Product Information

    Item No. Description Watts Initial
    Lumens    		 Line
    Voltage
    Supply    		 Line Current Total
    Harmonic
    Distortion
    (THD)    		 Power Factor Packaging Dimensions
    Width Length Height
    19120-PC 22“ High-Bay  Polycarbonate 120 9,600 120-277 VAC 1.05-0.45 Amp <10% 0.98 24 in. 610mm 24 in. 610mm 20 in. 510mm
    19150-PC 22" High-Bay Polycarbonate 150 12,000 120-277 VAC 1.31-0.56 Amp <10% 0.98 24 in.  610mm 24 in.  610mm 20 in.  510mm
    19200-PC 22“ High-Bay  Polycarbonate 200 16,000 120-277 VAC 1.75-0.75 Amp <10% 0.98 24 in. 610mm 24 in. 610mm 20 in. 510mm
    19250-PC 22“ High-Bay  Polycarbonate 250 20,000 120-277 VAC 2.18-0.94 Amp <10% 0.98 24 in. 610mm 24 in. 610mm 20 in. 510mm
    19300-PC 22“ High-Bay Polycarbonate 300 24,000 120-277 VAC 2.62-1.13 Amp <10% 0.98 24 in. 610mm 24 in. 610mm 20 in. 510mm

    Voltage:  UNV =  120V-277V  [ 347V or 480V also available ]
