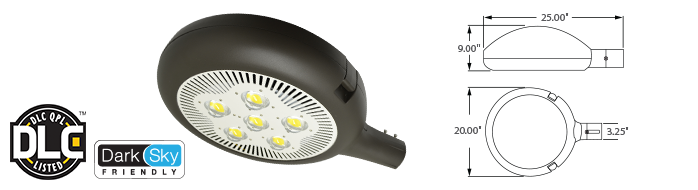

LED - Round Parking / Area Fixture - 100W Description


  • LED Driver
  • Power Supply
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Current Crest Factor
  • Driver Off-State Draw
  • Vibration Compliance
  • Universal Input Line Voltage
  • Input Line Frequency
  • Projected (L70) @ 25°C
  • Constant Current
    350mA
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C
    1.5 maximum
    0 Watts
    3G
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.
  • Color Temperature
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • ETL Listed / UL Standard 1598
  • EPA Rating
  • Driver IP Rating
  • Optics IP Rating
  • Warranty
  • 5,000°K
    > 80
    -40°C
    +50°C
    > 100
    Yes
    > 0.90
    < 20%
    < 10 Amp
    Part 15, Subp. C
    Yes
    1.57 ft.²
    IP67
    IP68
    10 Year

    LED - Round Parking / Area Fixture - 100W

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing.
    • Corrosion resistant electrocoat bronze finish (custom colors available).
    • Slim, state of the art, low profile design for minimum wind load resistance.
    • 2.50" I.D. Slip Fitter accepts up to 2-3/8" round pipe or tenon.
    • Correlated Color Temperature of (5000°K) for greater visibility and safety.
    • High Output COB LED's.
    • Driver with built in Neptun Surge Protective Device (NSPD) provides single phase protection for Line/Neutral, Line/Ground, and Neutral/Ground in accordance with IEEE C62.41C High (10kV & 10kA).
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 15 years Maintenance free operation.
    • 10 Year Warranty on complete fixture. (LED's, Driver, & Housing)
    • Optional: 0-10V Dimming, Bi-Level Dimming, Remote Monitoring and ON/ OFF Control, DC 24V Operation - Solar Compatible

    Product Information

    Model No. Description Rated Watts Input Watts

    Initial Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    LED-47100-UNV-850
    LED Parking Lot Fixture
    100 102
    10,200 120-277 0.87 - 0.37 <20% >0.90 30 lbs.
