LED - Dusk-to-Dawn - Security - Barn Light Fixture Description


  • Driver
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Current Crest Factor
  • Driver Off-State Draw
  • Vibration Compliance
  • Universal Input Line Voltage
  • Input Line Frequency
  • Projected (L70) @ 25°C
  • Constant Current
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C High
    1.5 maximum
    0 Watts
    3G
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.
  • Color Temperature
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • EPA Rating
  • Housing IP Rating
  • Driver IP Rating
  • Warranty
  • Multiple (+/-300°K)
    > 80
    -30°C
    +50°C
    > 130
    Yes
    > 0.95
    < 15%
    < 10 Amp
    Part 15, Subp. C
    0.56ft²
    IP66
    IP67
    5 Year Limited

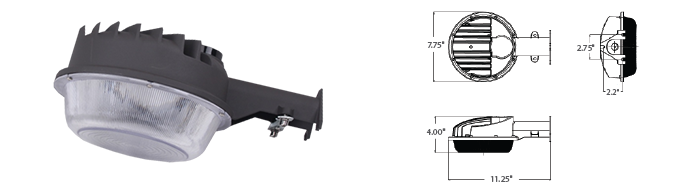

    LED - Dusk-to-Dawn - Security - Barn Light Fixture

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing.
    • Heat and impact resistant, UV protected, non yellowing drop lens.
    • Corrosion resistant electrocoat dark bronze finish (custom colors available).
    • Slip Fitter mount accepts 1-1/2" - 1-5/8" Round Pipe or Tenon (arm included)
    • NEMA Photocell for Dusk-to-Dawn On/Off control included.
    • High Output LED's.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Bright white light (5000°K) for greater visibility and safety.
    • Up to 15 year maintenance free operation.
    • 5 Year Limited Warranty.
    • Optional: DC 24V Operation - Solar Compatible

    Product Information

    Model No. Description Input Watts
    Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    LED-20030-UNV
    LED Dusk-To-Dawn Security Fixture
    30
    3,900 120-277 0.26 - 0.11 <15% >0.95 7 lbs.
    LED-20050-UNV LED Dusk-To-Dawn Security Fixture 50 6,500 120-277 0.43 - 0.18 <15% >0.95 7 lbs.
