LED - Specification Grade Street Light - LED-779-L6 Series Description


  • Driver
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Current Crest Factor
  • Driver Off-State Draw
  • Vibration Compliance
  • Universal Input Line Voltage
  • Input Line Frequency
  • Projected (L70) @ 25°C
  • BUG Rating

    		•  Constant Current
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C High
    1.5 maximum
    0 Watts
    3G
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.
    B3-U0-G3
  • Color Temperature
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • EPA Rating
  • Housing IP Rating
  • Driver IP Rating
  • Optics IP Rating
  • Warranty
    		•  Multiple (+/-300°K)
    > 80
    -40°C
    +50°C
    > 130
    Yes
    > 0.95
    < 15%
    < 10 Amp
    Part 15, Subp. C
    0.56ft²
    IP66
    IP67
    IP68
    10 Year Limited

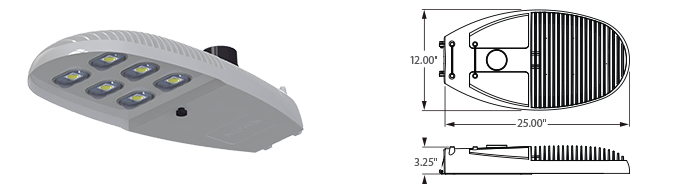

    LED - Specification Grade Street Light - LED-779-L6 Series

    Application, Features and Benefits
    • Heavy-gauge, die-cast, low copper alloy aluminum housing with integral heat sink fins for excellent thermal management.
    • Finish tested to withstand 2,000 hrs. of salt spray testing according to ASTM B117 and meets ASTM D523 gloss retention.
    • Slim, state of the art, low profile design for minimum wind load resistance.
    • Continuous silicone gasket surrounds lens for IP68 weather tight seal.
    • Tool-Less entry housing with quick disconnect for easy installation.
    • Internal Bubble Level for easy installation.
    • High Output COB LED's with borocilicate glass lens optics.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Optional 20kV/10kA surge protector available.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 20 years Maintenance free operation.
    • 10 Year Limited Warranty on fixture. (LED's Driver & Housing)
    • Optional: 0-10V Dimming, Bi-Level Dimming, Wi-Fi Control, Remote Monitoring and ON/OFF Control

    Product Information

    Model No. Description Rated Watts Input Watts
    		 Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    		 THD Power Factor Weight
    LED-779160-L6-UNV LED Street Light Fixture 160 162 21,060 120-277 1.39 - 0.60 <15% >0.95 24 lbs.
    LED-779170-L6-UNV LED Street Light Fixture 170 172 22,360 120-277 1.48 - 0.64 <15% >0.95 24 lbs.
    LED-779180-L6-UNV LED Street Light Fixture 180 182 23,660 120-277 1.57 - 0.68 <15% >0.95 24 lbs.
    LED-779190-L6-UNV LED Street Light Fixture 190 192 24,960 120-277 1.66 - 0.72 <15% >0.95 24 lbs.
