LED Gas Station / Canopy Fixture Description


  • LED Driver
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • ANSI Surge Protection
  • Projected (L70) @ 25°C
  • Color Temperature
  • Color Rendering Index (CRI)
  • Constant Current
    Class 1
    Wet Location
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    0 Watts
    Class A
    IEEE C62.41 C
    > 100,000 Hrs.
    4,100°K
    > 80
  • Beam Spread
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • Housing IP Rating
  • Driver IP Rating
  • Warranty
  • 120°
    -40°F
    +50°F
    > 140
    Yes
    > 0.95
    < 15%
    < 10 Amp
    Yes
    Part 15, Subp. C
    IP65
    IP67
    5 Year

    LED Gas Station / Canopy Fixture

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing.
    • Corrosion resistant electrocoat white finish.
    • Continuous silicone gasket surrounds lens for weather - tight seal.
    • High Output LED's.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • LED engine design with Advanced Thermal Management
    • Up to 15 year maintenance free operation.
    • 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)

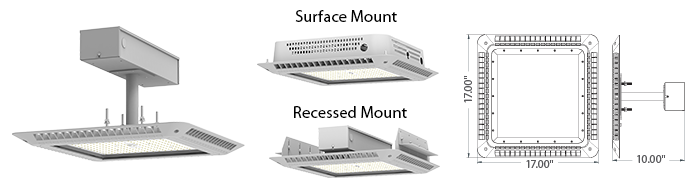

    • Optional:  Surface mounting brackets or recessed mounting brackets

    Product Information

    Model No. Description Input Watts
    Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    LED-GS-060-UNV
    LED Gas/Canopy Fixture
    60
    8,400 120-277 0.52 - 0.22 <15% >0.95 17 lbs.
    LED-GS-060-UNV LED Gas/Canopy Fixture 100
    14,000 120-277 0.87 - 0.37 <15% >0.95 17 lbs.
    LED-GS-060-UNV LED Gas/Canopy Fixture 150
    21,000 120-277 1.31 - 0.56 <15% >0.95 17 lbs.
    LED-GS-060-UNV LED Gas/Canopy Fixture 200 28,000 120-277 1.74 - 0.75 <15% >0.95 17 lbs.
