LED - 18" Wall Pack - Flood Type Fixtures - 21xxxFLD Description

  • LED Driver
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • System Life
  • Lumen Maintenance @50,000Hrs
  • Color Temperature
  • Color Rendering Index (CRI)
    		• Constant Current
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    70,000 Hrs.
    >85%
    5000 K
    >75
  • Minimum Starting Temperature
  • Maximum Operating Temperature
  • Lamp Operating Frequency
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
    		• -40 F
    125 F
    250 kHz
    > 0.98
    < 10%
    < 10 Amp
    Part 18, Subp. C

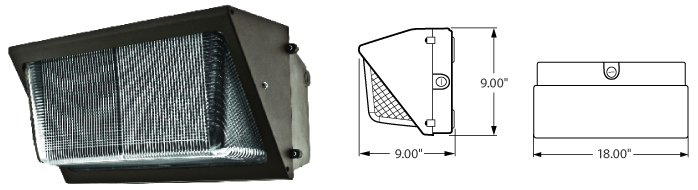

    LED - 18" Wall Pack - Flood Type Fixtures - 21xxxFLD

    Application, Features and Benefits

    Product Information

    Item No. Description Total Watts Initial Lumens Line Voltage Supply Line Current Total Harmonic Distortion (THD) Power Factor Packaging Dimensions
    Width Length Height
    LED-21080FLD LED Wall Pack - Flood Type 80 6,400 120-277 VAC 0.69-0.30 Amp <10% >0.98 12.0in.  304mm 20.0in.  508mm 11.0 in. 280mm
    LED-21100FLD LED Wall Pack - Flood Type 100 8,000 120-277 VAC 0.87-0.37 Amp <10% >0.98 12.0in.  304mm 20.0in.  508mm 11.0 in. 280mm

    Voltage:  UNV = 120V to 277VAC
