LED T8 Sign Lamps - T12 Retrofit Description


  • LED Driver
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • LED / Driver System Life
  • Lumen Maintenance @50,000Hrs
  • Color Temperature
    		• Self-Ballasted
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    0 Watts
    Class A
    75,000 Hrs.
    > 70%
    Various
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • ETL Listed / UL Standard 1993
  • FCC Compliance
  • Warranty
    		•  > 80
    -35°C
    +45°C
    > 120
    Yes
    > 0.95
    < 15%
     Yes
    Part 15, Subp. C
    5 Year

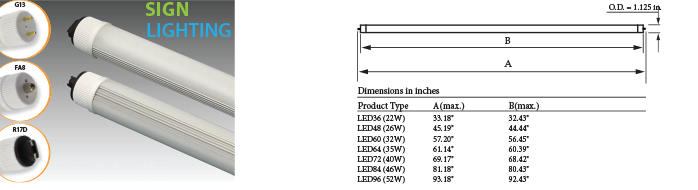

    LED T8 Sign Lamps - T12 Retrofit

    Application, Features and Benefits
    • Replaces existing T12 tubes for sign lighting applications.
    • Aluminum middle for excellent thermal management.
    • Double sided optics for direct / indirect lighting systems.
    • Frosted non yellowing polycarbonate lens for even glow. (Glare Free)
    • Correlated Color Temperatures of 3500°K, 4100°K & 5000°K.
    • Mercury free design.
    • No radiated EMI interference.
    • High Output LED's.
    • High power factor, low THD internal driver.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 15 years Maintenance free operation.
    • 5 Year Warranty.

    Product Information

    Model No. Watts Input Line
    Current (Amp)
    @ 120 - 277    		 Power
    Factor    		 THD
    		 CRI Lumens
    		 Lm/W Nominal
    Length
    (Inch)    		 Base Beam Angle
    SGN-LED36-DI-T8-UNV 22
    		 0.192-0.083
    		>0.95 <15% >80 2,640 120
    		 36" R17D/G13/FA8 360°
    SGN-LED48-DI-T8-UNV 26
    		 0.227-0.098  >0.95 <15% >80 3,120 120
    		 48" R17D/G13/FA8 360°
    SGN-LED60-DI-T8-UNV 32
    		 0.279-0.121  >0.95 <15% >80 3,840 120
    		 60" R17D/G13/FA8 360°
    SGN-LED64-DI-T8-UNV 35
    		 0.306-0.132  >0.95 <15% >80 4,200 120
    		 64" R17D/G13/FA8 360°
    SGN-LED72-DI-T8-UNV 40
    		 0.349-0.151 >0.95 <15% >80 4,800 120
    		 72" R17D/G13/FA8 360°
    SGN-LED84-DI-T8-UNV 46
    		 0.402-0.174 >0.95 <15% >80 5,520 120
    		 84" R17D/G13/FA8 360°
    SGN-LED96-DI-T8-UNV 52
    		 0.454-0.197 >0.95 <15% >80 6,240
    		 120
    		 96" R17D/G13/FA8 360°
