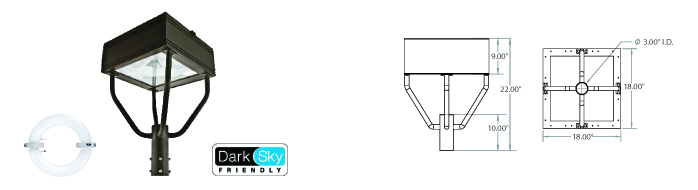

Induction Square Post Top Fixture - 64xxx series Description

  • Ballast Type
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Lamp/Ballast System Life
  • Lumen Maintenance @75,000Hrs
  • Color Temperature
  • Color Rendering Index (CRI)
    		• Electronic
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    100,000 Hrs.
    >70%
    5000 K
    83
  • Minimum Starting Temperature
  • Maximum Operating Temperature
  • Lamp Operating Frequency
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
    		• -20 F
    160 F
    250 kHz
    > 0.98
    < 10%
    < 10 Amp
    Yes
    Part 18, Subp. C

    Induction Square Post Top Fixture - 64xxx series

    Application, Features and Benefits
    • Zero Light Pollution (ZLP) design
    • Up to 20 years Maintenance Free Operation
    • InstantON flicker-free Cold Start and Hot Re-Start
    • Aluminum housing with electrocoat bronze paint
    • Ballasts made of long life components
    • Correlated Color Temperature of 5000 K for greater visibility
    • High Power Factor, Low THD Replaceable Ballast
    • Concealed continuous gasket seals against harmful dust, dirt, moisture and insects
    • IP-65 Rated for wet locations
    • Advanced phosphors for high Lumen Maintenance and high lumen output
    • Aluminum Anodized reflectors for superior long term performance
    • 3" Inside Diameter Slip Fitter to accept a 2-3/8" OD tenon or pole
    • 10 year Warranty

    Product Information

    Item No. Description Watts Initial
    Lumens    		 Line
    Voltage
    Supply    		 Line Current Total
    Harmonic
    Distortion
    (THD)    		 Power Factor Packaging Dimensions
    Width Length Height
    64080-UNV Square Post Top Fixture 80 6,400 120-277 VAC 0.69-0.30 Amp <10% 0.98 20 in. 508mm 20 in. 508mm 32 in. 812mm
    64100-UNV Square Post Top Fixture 100 8,000 120-277 VAC 0.87-0.37 Amp <10% 0.98 20 in. 508mm 20 in. 508mm 32 in. 812mm
    64120-UNV Square Post Top Fixture 120 9,600 120-277 VAC 1.05-0.45 Amp <10% 0.98 20 in.  508mm 20 in. 508mm 32 in. 812mm
    64150-UNV Square Post Top Fixture 150 12,000 120-277 VAC 1.31-0.56 Amp <10% 0.98 20 in. 508mm 20 in. 508mm 32 in. 812mm
    64200-UNV Square Post Top Fixture 200 16,000 120-277 VAC 1.75-0.75 Amp <10% 0.98 20 in. 508mm 20 in. 508mm 32 in. 812mm

    Voltage: UNV=120V-277V [ Higher 347V or 480V also available ]
