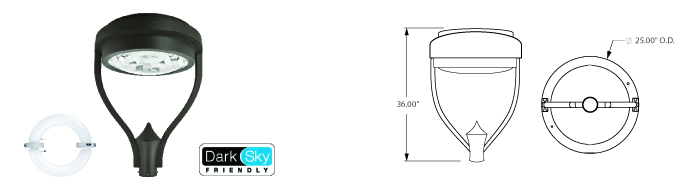

Induction Round Spider Post Top Fixture | 35xxx Series Description

  • Ballast Type
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Lamp/Ballast System Life
  • Lumen Maintenance @75,000Hrs
  • Color Temperature
  • Color Rendering Index (CRI)
    		• Electronic
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    100,000 Hrs.
    >70%
    5000 K
    83
  • Minimum Starting Temperature
  • Maximum Operating Temperature
  • Lamp Operating Frequency
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
    		• -20 F
    160 F
    250 kHz
    > 0.98
    < 10%
    < 10 Amp
    Yes
    Part 18, Subp. C

    Induction Round Spider Post Top Fixture | 35xxx Series

    Application, Features and Benefits
    • Zero Light Pollution (ZLP) design
    • Up to 20 years Maintenance Free Operation
    • InstantON flicker-free Cold Start and Hot Re-Start
    • Aluminum housing with electrocoat brown paint
    • Ballasts made of long life components
    • Correlated Color Temperature of 5000 K for greater visibility
    • High Power Factor, Low THD Replaceable Ballast
    • Concealed continuous gasket seals against harmful dust, dirt, moisture and insects
    • IP-65 Rated for wet locations
    • Advanced phosphors for high Lumen Maintenance and high lumen output
    • Aluminum Anodized reflectors for superior long term performance
    • Mounts to 3" Round Pole
    • 10 Year Warranty

    Product Information

    Item No. Description Watts Initial
    Lumens    		 Line
    Voltage
    Supply    		 Line Current Total
    Harmonic
    Distortion
    (THD)    		 Power Factor Packaging Dimensions
    Width Length Height
    35080 Spider Post Top Fixture 80 6,400 120-277 VAC 0.69-0.30 Amp <10% 0.98 28in. 711mm 30in. 762mm 12in. 304mm
    35100 Spider Post Top Fixture 100 8,000 120-277 VAC 0.87-0.37 Amp <10% 0.98 28in. 711mm 30in. 762mm 12in. 304mm
    35120 Spider Post Top Fixture 120 9,600 120-277 VAC 1.05-0.45 Amp <10% 0.98 28in. 711mm 30in. 762mm 12in. 304mm
    35150 Spider Post Top Fixture 150 12,000 120-277 VAC 1.31-0.56 Amp <10% 0.98 28in. 711mm 30in. 762mm 12in. 304mm
    35200 Spider Post Top Fixture 200 16,000 120-277 VAC 1.75-0.75 Amp <10% 0.98 28in. 711mm 30in. 762mm 12in. 304mm

    Voltage: UNV=120V-277V [ Higher 347V or 480V also available ]
