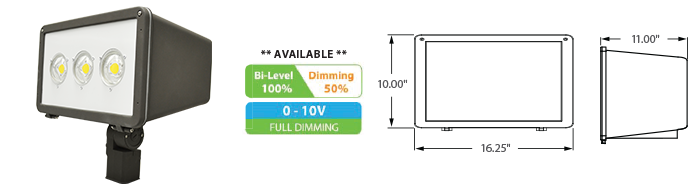

LED - COB Flood Light Fixture - LED-331xxx Series Description
LED Driver
Power Supply
Start Method
Hot Re-start
Driver UL Rating
Driver UL Outdoor Rated
Sound Rating
ANSI Surge Protection
Driver Off-State Draw
Universal Input Line Voltage
Input Line Frequency
Projected (L70) @ 25°C
Color Temperature
|
Constant Current 350mA InstantON InstantON Class 1 Wet Location Class A IEEE C62.41 C 0 Watts 120-277 VAC 50/60 Hz > 100,000 Hrs. 5,000°K
|
Color Rendering Index (CRI)
Beam Angle
Minimum Starting Temperature
Maximum Starting Temperature
Lumens per Watt
Shock / Vibration Resistant
Power Factor
Total Harmonic Distortion
Inrush Current Peak
FCC Compliance
Optics IP Rating
Driver IP Rating
Warranty
|
> 80 90° -40°C +50°C > 100 Yes > 0.90 < 20% < 10 Amp Part 15, Subp. C IP68 IP67 5 Year |
LED - COB Flood Light Fixture - LED-331xxx Series
Application, Features and Benefits
- Heavy-gauge, die-cast aluminum housing.
- Corrosion resistant electrocoat dark bronze finish (custom colors available).
- Hinged aluminum door frame incorporates stainless steel hardware.
- Adjustable Yoke Bracket or Slip Fitter mounting arm included.
- Correlated Color Temperature of (5000°K) for greater visibility and safety.
- High output COB LED's with borocilicate glass lens optics.
- High power factor, low THD driver with 6kV/3kA surge protector.
- Optional 20kV/10kA surge protector available.
- InstantON flicker-free Cold Start and Hot Re-Start.
- Up to 15 years Maintenance free operation.
- 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)
- Optional: 0-10V Dimming, Bi-Level Dimming, Wi-Fi Control, Remote Monitoring and ON/OFF Control, DC 24V Operation - Solar Compatible
Product Information
LED-331040-UNV |
LED Flood Light Fixture |
40 |
42 |
4,800 |
120-277 |
0.35 - 0.15 |
<20% |
>0.90 |
15 lbs. |
LED-331060-UNV |
LED Flood Light Fixture |
60 |
62 |
7,200 |
120-277 |
0.52 - 0.22 |
<20% |
>0.90 |
15 lbs. |
LED-331080-UNV |
LED Flood Light Fixture |
80 |
82 |
9,600 |
120-277 |
0.69 - 0.30 |
<20% |
>0.90 |
15 lbs. |
