LED - 2x2 COB High Output Panel FIxture Description


  • LED Driver
  • Power Supply
  • Driver UL Rating
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • Projected L70 @ 25°C
  • Color Temperature
  • Constant Current
    350mA
    Class 1
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    0 Watts
    Class A
    < 100,000 Hrs.
    3,500°K, 4,100°K, 5,000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • IP Rating
  • Warranty
  • > 80
    -40°C
    +50°C
    > 100
    Yes
    > 0.90
    < 20%
    < 10 Amp
    Part 15, Subp. C
    IP43
    5 Year

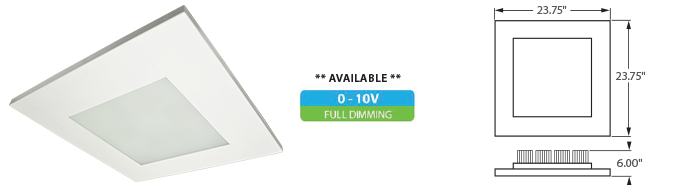

    LED - 2x2 COB High Output Panel FIxture

    Application, Features and Benefits
    • Stamped aluminum housing with extruded heat sink.
    • Heat and impact resistant frosted glass lens for even glow illumination.
    • Corrosion resistant electrocoat white finish.
    • High Output COB LED's.
    • High power factor, low THD driver with 10kV Surge Protection.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • LED engine design with Advanced Thermal Management.
    • Up to 15 years Maintenance free operation.
    • 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)
    • Optional: 0-10V Dimming, Remote Monitoring, Wi-Fi Control, and ON/OFF Control.

    Product Information

    Model No. Description Rated Watts Input Watts
    Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    LED-51150-UNV
    LED 2x2 Troffer
    150
    152
    16,500 120-277 1.31 - 0.58 <20% >0.90 30 lbs.
    LED-51180-UNV LED 2x2 Troffer 180
    182
    19,800 120-277 1.57 - 0.68 <20% >0.90 30 lbs.
