LED - Bulk Head Fixtures Description


  • Driver
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Driver Off-State Draw
  • Universal Input Line Voltage
  • Input Line Frequency
  • Projected (L70) @ 25°C
  • Constant Current
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C High
    0 Watts
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.

  • Color Temperature
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • Housing IP Rating
  • Driver IP Rating
  • Warranty
  • Multiple (+/-300°K)
    > 80
    -40°C
    +50°C
    > 90
    Yes
    > 0.95
    < 15%
    < 10 Amp
    Part 15, Subp. C
    IP65
    IP67
    5 Year Limited

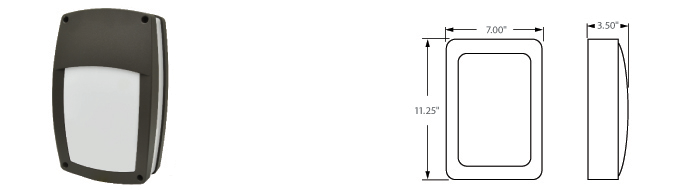

    LED - Bulk Head Fixtures

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing.
    • High efficiency, heat and impact resistant, UV protected, non yellowing polycarbonate lens/refractor.
    • Corrosion resistant electrocoat  bronze finish (custom colors available).
    • Easy removal lens with (4) stainless steel screws for easy installation.
    • Continuous silicone gasketing surrounds lens for weather-tight seal.
    • Correlated Color Temperature of (5000°K) for greater visibility and safety.
    • High Output COB LED's.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 20 years Maintenance free operation.
    • 5 Year Limited Warranty on fixture. (LED's, Driver, & Housing)
    • Optional: DC 24V Operation - Solar Compatible

    Product Information

    Model No. Description Rated Watts Input Watts
    Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    LED-205020-UNV
    LED Bulk Head Fixture
    20
    21
    1,890
    120-277 0.17 - 0.07 <15% >0.95 4 lbs.
