Neptun Certified - EMCO Lighting - ERP, ERA, ERW 25 Series Retrofit Kit Description


  • Ballast Type
  • Start Method
  • Hot Re-start
  • Input Line Voltage
  • Input Line Frequency
  • Lamp Operating Frequency
  • Ballast Off-State Draw
  • Sound Rating
  • ANSI Surge Protection
  • Lamp / Ballast System Life
  • Lumen Maintenance @75,000Hrs
    		•  Electronic
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    250 kHz
    0 Watts
    Class A
    Class A
    100,000 Hrs.
    >70%
  • Color Temperature
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
    		•  5000°K
    83
    -20°F
    160°F
    80
    Yes
    > 0.98
    < 10%
    < 10 Amp
    Yes
    Part 18, Subp. C

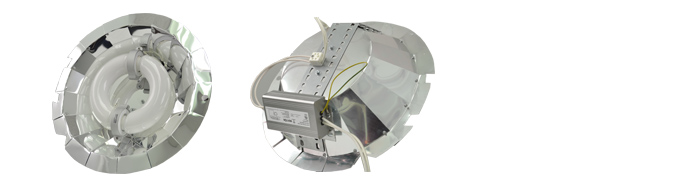

    Neptun Certified - EMCO Lighting - ERP, ERA, ERW 25 Series Retrofit Kit

    Application, Features and Benefits
    • Custom designed anodized aluminum reflectors for superior illuminance.
    • Steel support brackets with stainless steal hardware.
    • Custom engineered for easy installation.
    • Teflon coated wiring protected from moisture, dust, heat, & cold.
    • Inductively coupled circular or rectangular induction bulb.
    • High power factor, low THD electronic ballast with surge protection.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • Amalgam technology with very low mercury content.
    • High quality glare-free light with high CRI (83).
    • Bright white light (5000˚K) for greater visibility and safety.
    • Advance phosphors for high lumen output and high lumen maintenance.
    • Up to 20 year maintenance free operation.
    • 5 Year System Warranty.

    Product Information

    Item No. Description Watts Initial
    Lumens    		 Line
    Voltage
    Supply    		 Line Current Total
    Harmonic
    Distortion
    (THD)    		 Power Factor Packaging Dimensions
    Width Length Height
    EMCOER25-120W-RK-UNV Custom Retrofit Kit
    		 40 3,200 120-277 VAC 0.35-0.15 Amp <10% 0.98 18in. 457mm 18in. 457mm 8in. 203mm
    EMCOER25-120W-RK-UNV Custom Retrofit Kit 120 9,600 120-277 VAC 1.05-0.45 Amp <10% 0.98 18in.  457mm 18in.  457mm 8in.  203mm
    EMCOER25-150W-RK-UNV Custom Retrofit Kit 150 12,000 120-277 VAC 1.31-0.56 Amp <10% 0.98 18in. 457mm 18in. 457mm 8in. 203mm
    EMCOER25-175W-RK-UNV Custom Retrofit Kit
    		 175 14,000 120-277 VAC 1.53-0.66 Amp <10% 0.98 18in. 457mm 18in. 457mm 8in. 203mm
    EMCOER25-200W-RK-UNV Custom Retrofit Kit
    		 200 16,000 120-277 VAC 1.74-0.75 Amp
    		 <10% 0.98 18in  457mm 18in.  457mm 8in  203mm
    EMCOER25-225W-RK-UNV Custom Retrofit Kit 225 18,000 120-277 VAC 1.96-0.85 Amp <10% 0.98 18in.  457mm 18in.  457mm 8in.  203mm

    Voltage:  UNV=120V-277V [ Higher 347V or 480V also available ]
