24VDC Solar Compatible LED Billboard Fixtures Description


  • LED Driver
  • Power Supply
  • Start Method
  • Hot Re-start
  • Input Line Voltage
  • Input Line Frequency
  • Ballast Off-State Draw
  • Sound Rating
  • ANSI Surge Protection
  • LED / Driver System Life
  • Lumen Maintenance @50,000Hrs
  • Color Temperature
    		• Constant Current
    350mA
    InstantON
    InstantON
    24VDC
    50/60 Hz
    0 Watts
    Class A
    Class A
    75,000 Hrs.
    > 70%
    5700°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
  • Housing IP Rating
  • Driver IP Rating
  • Optics IP Rating
  • Warranty
    		•  > 70
    -35°C
    50°C
    > 90
    Yes
    > 0.98
    < 10 Amp
    Yes
    Part 18, Subp. C
    IP65
    IP67
    IP68
    10 Year

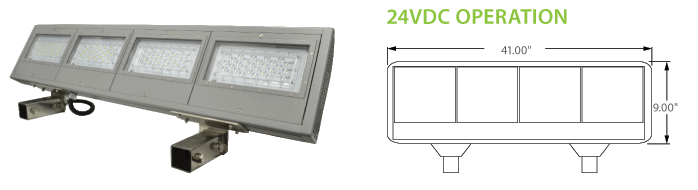

    24VDC Solar Compatible LED Billboard Fixtures

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing with cooling fins.
    • Corrosion resistant electrocoat grey finish (custom colors available).
    • Slim, state of the art, low profile design for minimum wind load resistance.
    • Heat and impact resistant tempered flat glass lens.
    • Continuous silicone gasketing surrounds optics for IP68 weather tight seal.
    • 1-1/2" I.D. Slip Fitter Accepts up to 1-1/4" Pipe or Tenon. (hardware included)
    • Correlated Color Temperature of (5700°K) for greater visibility.
    • Patented constant light control output over 75,000 hrs. life.
    • High power factor, 24VDC driver.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 15 years Maintenance free operation.
    • 10 Year Warranty on complete fixture. (LED's, Driver, & Housing)

    Product Information

    Model No. Description Rated Watts Input Watts

    		 Initial Lumens Input
    Line Voltage (VDC)    		 Max Line Current (Amp)
    		 Power Factor Weight
    LED-87160-M4-24VDC
    		 LED Billboard Fixture
    		 160 162
    		 16,000 24
    		 6.99 >0.98 25 lbs.
