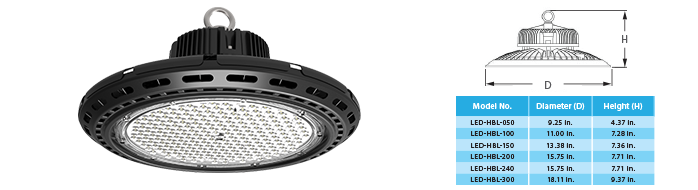

LED High-Bay Fixture - IP65 Description


  • LED Driver
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Driver Off-State Draw
  • Universal Input Line Voltage
  • Input Line Frequency
  • Projected (L70) @ 25°C
  • Color Temperature
  • Constant Current
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C High
    0 Watts
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.
    Multiple (± 300°K)
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • Housing IP Rating
  • Warranty
  • > 80
    -25°C
    +50°C
    > 130
    Yes
    > 0.95
    < 15%
    < 10 Amp
    Part 15, Subp. C
    IP65
    5 Year Limited

    LED High-Bay Fixture - IP65

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing with cooling fins.
    • Heat and impact resistant tempered glass lens.
    • Corrosion resistant electrocoat dark black finish.
    • Continuous silicone gasket surrounds lens for weather - tight seal.
    • High Output LED's.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • High performance Thermal Management system.
    • Up to 20 year maintenance free operation.
    • 5 Year Limited Warranty on fixture. (LED's, Driver, & Housing)
    • Optional:  Bi-Level Dimming, 0-10V Dimming, Remote Monitoring and ON/ OFF Control.

    Product Information

    Model No. Description Input Watts
    Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor Weight
    LED-HBL-050-UNV
    LED Low-Bay
    50
    6,750 120-277 0.43 - 0.18 <15% >0.95 4 lbs.
    LED-HBL-100-UNV LED High-Bay
    100
    13,500 120-277 0.87 - 0.37 <15% >0.95 8 lbs.
    LED-HBL-150-UNV LED High-Bay 150
    20,250 120-277 1.31 - 0.56 <15% >0.95 10 lbs.
    LED-HBL-200-UNV LED High-Bay 200 27,000 120-277 1.74 - 0.75 <15% >0.95 13 lbs.
    LED-HBL-240-UNV LED High-Bay 240 32,400 120-277 2.10 - 0.90 <15% >0.95 13 lbs.
    LED-HBL-300-UNV LED High-Bay 300 40,500 120-277 2.62 - 1.13
    <15% >0.95 22 lbs.
