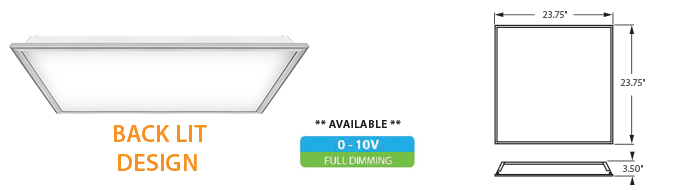

LED - High Output 2x2 Troffer Fixture - LED-51xxx Series Description


  • LED Driver
  • Power Supply
  • Driver UL Rating
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • Projected L70 @ 25°C
  • Color Temperature
  • Constant Current
    350mA
    Class 1
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    0 Watts
    Class A
    < 100,000 Hrs.
    3,500°K, 4,100°K, 5,000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • IP Rating
  • Warranty
  • > 80
    -40°C
    +50°C
    > 100
    Yes
    > 0.90
    < 20%
    < 10 Amp
    Part 15, Subp. C
    IP43
    5 Year

    LED - High Output 2x2 Troffer Fixture - LED-51xxx Series

    Application, Features and Benefits
    • Stamped aluminum housing with extruded heat sink.
    • High Efficiency non-yellowing polycarbonate lens/refractor.
    • Polyester powder coated frame with white finish.
    • Slim, state of the art, low profile design.
    • High Output LED's.
    • High power factor, low THD driver with 6kV/3kA surge protection.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 15 years Maintenance free operation.
    • 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)
    • Optional: 0-10V Dimming, Remote Monitoring, Wi-Fi Control, and ON/OFF Control.

    Product Information

    Model No. Description Rated Watts Input Watts
    Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    THD Power Factor
    LED-51080-UNV
    LED 2x2 Troffer
    80
    81
    8,800 120-277 0.69 - 0.30 <20% >0.90
    LED-51100-UNV LED 2x2 Troffer 100
    102
    11,000 120-277 0.87 - 0.37 <20% >0.90
    LED-51120-UNV LED 2x2 Troffer 120 122 13,200 120-277 1.05 - 0.45 <20% >0.90
    * Fixture Weight = 20 lbs.
