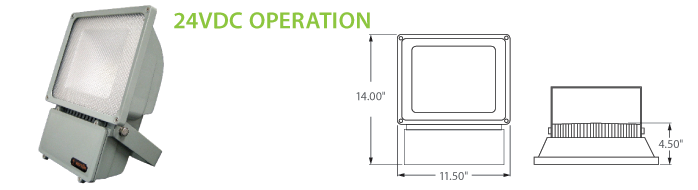

24VDC Solar Compatible LED Flood Lighting 30W-50W Description


  • LED Driver
  • Power Supply
  • Start Method
  • Hot Re-start
  • Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • LED / Driver System Life
  • Lumen Maintenance @50,000Hrs
  • Color Temperature
    		• Constant Current
    350mA
    InstantON
    InstantON
    24 VDC
    50/60 Hz
    0 Watts
    Class A
    70,000 Hrs.
    > 70%
    3000°K, 4100°K, 5000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • ETL Listed / UL Standard 1598
  • FCC Compliance
  • IP Rating
  • Warranty
    		•  > 70
    -40°C
    50°C
    > 70
    Yes
    > 0.98
     Yes
    Part18, Subp. C
    IP65
    5 Year

    24VDC Solar Compatible LED Flood Lighting 30W-50W

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing.
    • 24VDC system suitable for use with Solar & Wind Systems.
    • Corrosion resistant electrocoat grey finish (custom colors available).
    • Heat and impact resistant frosted flat glass lens.
    • Aluminum door frame incorporates stainless steel hardware.
    • Adjustable yoke bracket mounting.
    • Continuous silicone gasket surrounds lens for weather - tight seal.
    • Correlated Color Temperature of (5000°K) for greater visibility and safety.
    • 1 PCS High Output LED's
    • High power factor, 24VDC driver.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 15 years Maintenance free operation.
    • 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)

    Product Information

    Model No. Description Rated Watts Input Watts

    		 Initial Lumens Line Voltage (VDC) Max Line Current (Amp) @ 24VDC
    		 Power Factor Weight
    LED-50030-24VDC
    		 LED Flood Fixture
    		 30 31
    		 2,400 24 1.31 >0.98 12 lbs.
    LED-50050-24VDC LED Flood Fixture 50 52 3,850 24 2.18 >0.98 12 lbs.
